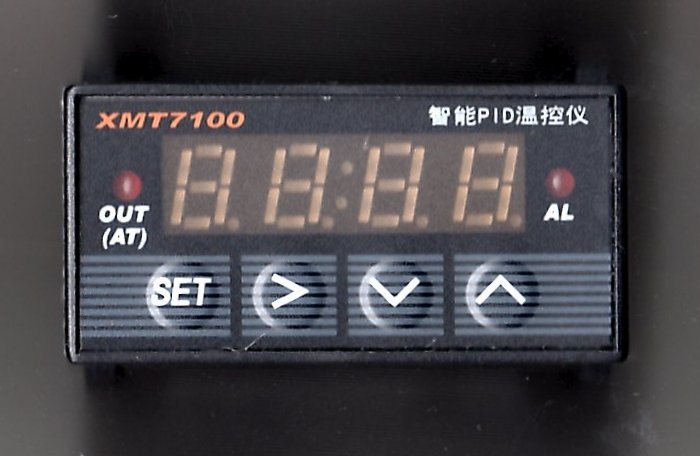

XMT7100 PID temperature controller unit accepts the following inputs:
- Output Drive = SSR ( solid state relay ) Drive pulse
- Single Set Point temperature controller - You set the desired temperature and the controller drives towards that point. ( no ramp / soak option )
- Tiny - will easily fit in coffee roosting applications:
Controller dimension: 48x24x75(mm). or about 1.75 X 7/8 X 3.0 inches
- Accepts inputs shown in the table below. See table for Temperature Sensor Type versus temperature range
- Operation Manual
|
Symbol
|
Description
|
Range C
|
Range F
|
Comment
|
|
T
|
T Thermocouple
|
0 ~ 4000
|
32 ~ 7232
|
Internal Resistant
|
|
R
|
R Thermocouple
|
0 ~ 1600
|
32 ~ 3012
|
Internal Resistant
|
|
J
|
J Thermocouple
|
0 ~ 1200
|
32 ~ 2192
|
Internal Resistant
|
|
WRe
|
WRe Thermocouple
|
0 ~ 2300
|
32 ~ 4172
|
Internal Resistant
|
|
B
|
B Thermocouple
|
350 ~ 1800
|
660 ~3272
|
Internal Resistant
|
|
S
|
S Thermocouple
|
0 ~ 1600
|
32 ~3012
|
Internal Resistant
|
|
K
|
K Thermocouple
|
0 ~ 1300
|
32 ~ 2372
|
Internal Resistant
|
|
E
|
E Thermocouple
|
0 ~ 900
|
32 ~ 1652
|
Internal Resistant
|
|
P10.0
|
P100 Thermo Resistor
|
-2.000 ~ 6.000
|
|
Constant Output
|
|
P100
|
Pt100 Thermo Resistor
|
-200 ~ 600
|
-328 ~ 1112
|
Constant Output
|
|
Cu50
|
Cu50 Thermo Resistor
|
-500 ~ 1500
|
-868 ~ 2732
|
Constant Output
|

|
